Installation, updates, general problem solving and assistance.
User avatar
!
25%
Posts: 2539
Joined: 2013-02-25 18:36

2015-10-13 05:56 »

The following works with fully patched Windows 10 x64 Enterprise, 2015-10-13. Please bear in mind that sometimes, Windows Update breaks this patch, I will try to keep this up to date, no promises, however.

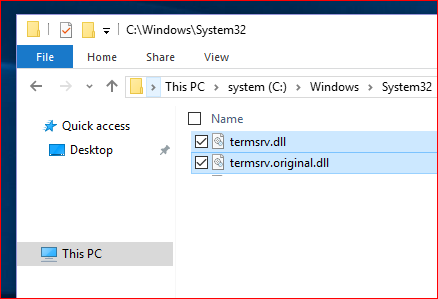

First, make a copy of the file "termsrv.dll" which is inside "c:windowssystem32", in case you fuck things up. :roll:

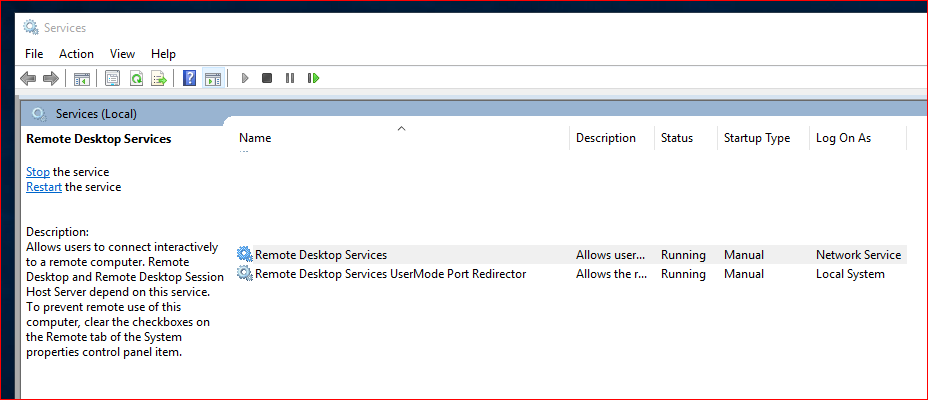

Go to "Services" and stop "Remote Desktop Services". It cannot be running while you are editing the file.

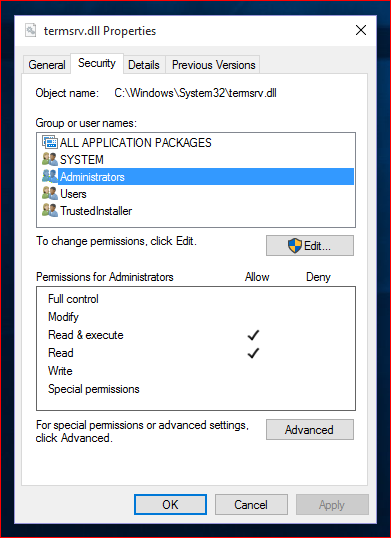

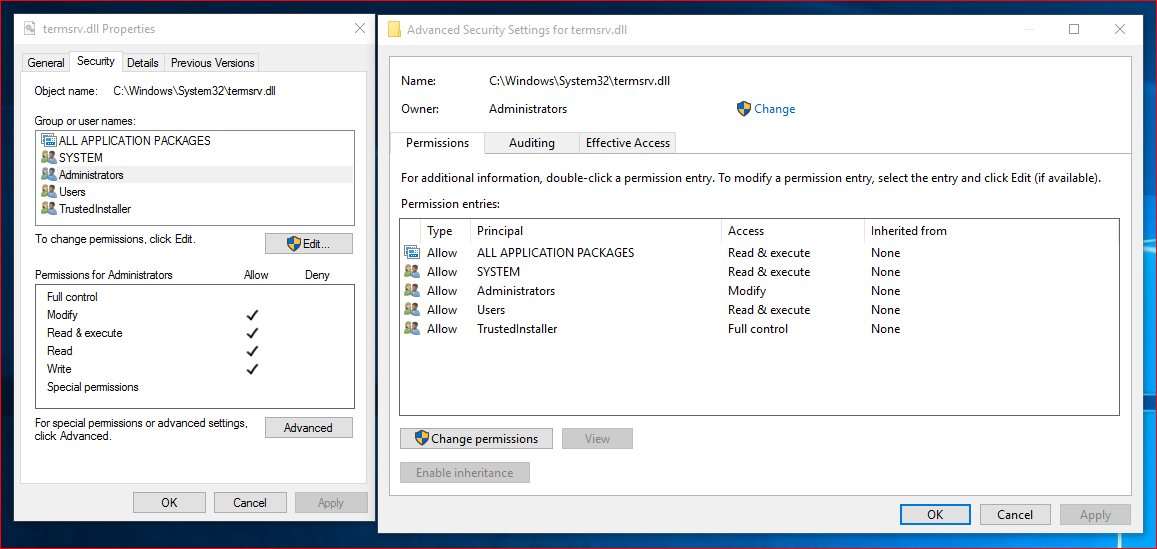

You must change permission of the file by going to "Properties":"Security" tab, click on "Advanced" and change "Owner" from "TrustedInstaller" to "Administrators". Then hit OK. Now, back in the "Security" tab, mark "Administrators", hit "Edit" and give it "Modify" permission and hit OK.


You can use any hex editor to edit the "termsrv.dll" file.

Find:

Code: Select all

39 81 3C 06 00 00 0F 84 73 42 02 00

Replace that string with:

Code: Select all

B8 00 01 00 00 89 81 38 06 00 00 90

Now, you can start the "Remote Desktop Services" again.

Personally, I prefer to remove the "Modify" permission from the "Administrators" after I'm done.


There is, of course the RDP Wrapper Library that you can use (never tried it myself) but I don't like to add an extra layer and would like to keep things as clean and original as possible.

Ps. Fuck you Microsoft!
(I would have paid for this function but the motherfuckers won't sell it and I can't use a fucking server operating system in my home!)


User avatar
PROBLEMCHYLD
VIP
Posts: 628
Joined: 2013-03-22 12:55

2015-10-14 13:22 »

I try my best to avoid 3rd party software, if I can get away with using the Microsoft basics, I'm fine with that.

User avatar
!
25%
Posts: 2539
Joined: 2013-02-25 18:36

2015-10-14 13:28 »

Ah yeah, 100% agreed! :clap: I'm just like that myself. That's why I personally use the hex edit solution and alter the .DLL file myself. Much cleaner that way ...and safer! Although, there is the source code available for the RDP Wrapper, I still think altering .DLL file is a much cleaner way to do it. :mrgreen:

z3r0ne

2015-11-16 18:43 »

Patched version 10.0.10586 :thumbup:

http://depositfiles.com/files/2l0llrg11

Termsrv (Build 10.0.10586).rar
Moderator note: THIS FILE IS NOT VERIFIED. USE AT YOUR OWN RISK.
(1.97 MiB) Downloaded 410 times

Termsrv (Build 10.0.10586).zip
Moderator note: THIS FILE IS NOT VERIFIED. USE AT YOUR OWN RISK.
(825 KiB) Downloaded 321 times

User avatar
!
25%
Posts: 2539
Joined: 2013-02-25 18:36

2015-11-17 08:52 »

@z3r0ne,

Oh dear God, that was a total obnoxious link that you used to upload your file. :lol: I have attached the file in your post so people don't have to go there to download it. You do NOT need to upload files to outside sources in here as long as these are legal files. We allow attachments both for registered and non-registered users.

Anyway, thank you for the file. Although, I personally prefer to "create / make / alter" on my own, especially when it comes to system files which allow outside internet connection :roll: ...but I guess someone will have a use from your file as well if they don't like to use a hex edit tool.

Ps. I have sent an email to you, please make sure to reply to it, otherwise, your account will be deleted. Please bear in mind that your posts will not get deleted and non-registered users can use our services as well. We just don't like "dead" member accounts we can't reach. :mrgreen:

Last but not least, welcome! :grin:

sumit

2016-02-06 07:59 »

i have installed windows 10 enterprise eval edition ..
in the termsrv.dll the string
39 81 3C 06 00 00 0F 84 73 42 02 00 could not be found but there is an almost match
39 81 3C 06 00 00 0F 84 3F 42 02 00

User avatar
!
25%
Posts: 2539
Joined: 2013-02-25 18:36

2016-02-06 09:27 »

@sumit:

Try this:

Find:

Code: Select all

39 81 3C 06 00 00 0F 84 3F 42 02 00

Replace with:

Code: Select all

B8 00 01 00 00 89 81 38 06 00 00 90

User avatar
PROBLEMCHYLD
VIP
Posts: 628
Joined: 2013-03-22 12:55

2016-04-03 07:03 »

I need a patch for WinXp Pro. I know the offset is different but maybe you can help me.

User avatar
!
25%
Posts: 2539
Joined: 2013-02-25 18:36

2016-04-03 17:20 »

Which version is it? I mean, 32bit or 64bit? Also, if you have any build number, it would help. Hm, is it SP2 or SP3?

User avatar
PROBLEMCHYLD
VIP
Posts: 628
Joined: 2013-03-22 12:55

2016-04-03 17:24 »

Winxp sp3 32bit termsrv.dll 5.1.2600.5815, there are patches online but they didn't work.
